Computer Components Explained

As the name hopefully suggests, computer-based music production includes one critical component in the overall set-up; a computer. Mac or PC, purchasing a computer for music production—or even building one yourself— can be a significant investment. If you are not on the more technical savvy side, this can be a overwhelming experience.

In this article, I will share my expertise of computers to give you a working knowledge of the core computer components as they relate to music production to help you make the best decisions for your music production goals.

Core Components

While there are numerous parts that go into a computer, there are some core components that play a bigger role–and thus are normally the focus–when determining a computers overall performance. When purchasing and customizing, the main four of focus are:

Central Processing Unit

RAM (Memory)

Storage

Graphics Processing Unit

I’m sure most people have heard these terms before; but without having a good understanding of what they are, what they do, and why they are important and for which tasks, it will be difficult to make an informed decision based on your musical goals.

Let's have a closer look at each of these core components and understand how they play a role in computer based music production.

1. Central Processing Unit

The Processor can be thought of as the brain of the computer, doing all the critical thinking.

Analogy

The Central Processing Unit, or CPU and processor for short, can be thought of as the brain of the computer. The processor is the core component of a computer that is doing all the heavy thinking.

What It’s Good For

The processor is going to be important when using any kind of virtual synthesis or sound generating plug-in that is not heavily using audio samples. DSP—which stands for Digital Signal Processor— synths like Massive, Sylenth1, and DIVA rely solely on a computer's processor to generate the sounds they produce.

Some synths like U-he’s DIVA have an option to enable multi-core processing. Multi-core refers to a single processor that has more than one processing core. The easiest way to think if this is as having multiple processors in one. Since DIVA is a DSP synth, it's not using any samples and is generating all the sounds you hear. DIVA is probably the most processor intensive synth I've used, but it definitely shows in the quality of sound it can produce.

DIVA is a powerful synth with a powerful appetite for computer processors. Enabling multi-core processing will help your computer fend off her ravenous rage. Or just allow her to eat more of them at once, I haven't quite figured out yet.

Sound processing plug-ins are no different. In fact Universal Audio, the makers of some amazing sounding sound processing plug-ins, require you to use their supplied hardware which is actually computer processors in a box that help off-load the required processing power from your main computer.

Universal Audio's UAD-2 Satellite gives you the processing power needed to run their amazing hardware emulation plug-ins. Image courtesy of Universal Audio

Key Terminology

Clock Rate refers to how fast a processor can perform calculations, often notated in GHz. In theory, the faster the clock rate, the faster it can process and therefore perform. a 3.5GHz processor will be significantly faster and outperform a 1.5GHz processor, not that any computers made within the last few years will have a processor that slow.

Over-clocking is the automatic or manual speeding up of a processor core past its stated clock rate. This lets the processor speed up momentarily to complete a task faster. Intel processors for example feature Turbo Boost, which is the temporary automatic over-clocking of the processor to speed up processor intensive tasks. For example a 2.5GHz processor will temporarily speed itself up to 3.2GHz in order to perform a fast faster.

Multi-Core refers to a processor that has more than one physical processor core, which is the part of the processor that is doing the “thinking”. The easiest way to think of this is to imagine having multiple processors in one. Now days multi-core processors are the norm, with quad-core (i.e. four processor brains) becoming the starting point for most mid-level computers. A quad-core 2.5GHz processor then has four physical processor cores, each running at 2.5GHz; in theory giving you 10GHz of processing power.

Hyper-threading is a technology that allows one physical processor core to act and be seen by the operating system as two processor cores. While not as fast as two physical cores, it does offer a significant speed boost over a single, non-hyper-threading processor core. So a quad-core 2.5GHz processor that features Hyper-threading can in theory give you close to 20GHz of processing power.

Cache refers to a small amount of storage memory on the processor that a processor can use to store bits of information that it is going to use multiple times in a short timeframe. this feature is often overlooked when choosing a processor option, but it can make a noticeable difference. If your processor is receiving bits of information from a software program, you can think of the cache as being a desk within arms reach that the processor can grab from, instead of having to walk across the room to get the information.

2. RAM

The RAM can be thought of as the short-term memory of the computer. It's contents will be forgotten when the computer is done using it.

Analogy

RAM can be thought of as the short-term memory of the computer, where it stores information that it is using at that particular moment for a specific task.

What It's Good For

RAM stands for Random Access Memory. The more RAM your computer has, the more it can have quick and easy access to all the various files it needs, such as audio samples, and the more it can handle and do at once when multi-tasking. If your workflow is going to be using sample-heavy plug-ins or you are going to be recording into your computer, you will want to have as much RAM available as you can.

An over-simplified explanation of how your computer uses RAM is that when turned on, it will eventually load the operating system into the computers RAM, along with any applications you then use like your DAW and any plug-ins. Once that's loaded, then you are loading individual projects.

If you've ever opened up a music project that uses a lot of samples and audio files, and you've felt like you were waiting forever for it to “load up”; what you were actually waiting for in part is for all the various audio files, drum samples, and sample based instruments to load from the computers hard drive into the RAM.

Tip: Mac Pro Video has a great example of what can happen when you run out of RAM on a computer. While technically explaining the difference between 32-bit and 64-bit processing in Logic Pro, the concept is the same if you have an amount of RAM such as 4 gigabytes that you could potentially max out.

Key Terminology

A Gigabyte is a measure of data size in the computer world—one thousand megabytes—and for all intents and purposes is the main thing you will be concerned with when making your RAM decisions.

The MHz speed and Dual Data Rate, or DDR, generation of RAM you get is generally determined for you by what your system can support. If you are building a computer, the rule of thumb here is the faster the better.

A Module or Stick simply refers to the actual RAM chip. If your computer can support 16 Gigabytes of RAM and has four module slots, you'll then want to make sure you are getting the appropriate RAM module size. In this example you'll want four 4GB RAM modules to have the maximum amount of RAM. This also happens to be my iMac's RAM configuration.

My iMac can officially support 16GBs of RAM, in a 4x4 configuration.

3. Storage

The storage of the computer can be thought of as the long-term memory, keeping your files until you delete them.

Analogy

The Storage device can be thought of as the long-term memory of the computer.

What It’s Good For

Where RAM is short-term storage that gets cleared out once a computer is done using it, such as when closing a DAW project,or when turning off or restarting the computer (or when your application crashes, which is why you most often lose your work); the long-term storage will remain in place when restarted or closed. This is where all your files are kept such as your music, sample libraries, DAW project files, movies, emails, applications, and even the operating system.

The amount of storage you will need will depend on your personal usage and also which applications and plug-ins you plan to use. Logic Pro X for example ships with over 30 gigabytes of musical content. Omnisphere from Spectrasonics comes with a whopping 40+ gigabytes of sample content, as does Kontakt from Native Instruments.

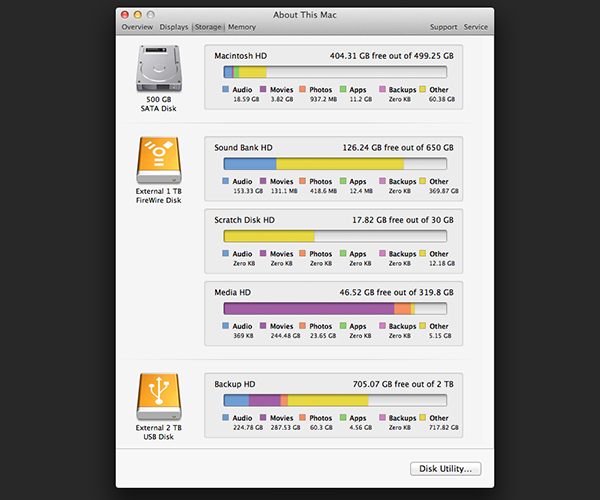

My HDD setup includes three separate physical drives, one of which is partitioned out into three more "drives" including my almost full Sound Bank drive.

As you can see with just a few select applications you can quickly fill up most of your computer storage with just sample content.

Key Terminology

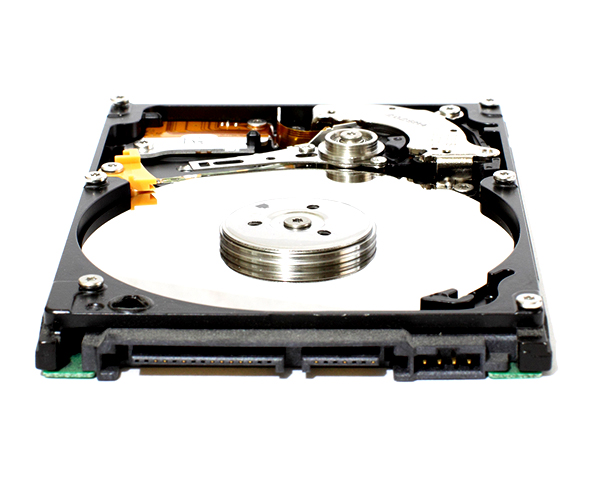

A Hard Disk Drive or HDD has become a general term for a computers storage, but this is actually a kind of storage; much like in America how the brand name Kleenex has become the general term for all disposable paper tissue. HDDs are the oldest style of mass storage, using physically moving parts to write data to magnetic patters. HDDs are the slowest storage available now, but are still in use because they are inexpensive. HDDs use a connector inside the computer called Serial ATA, so you will sometimes hear these referred to as Serial ATA Hard Disk Drives.

A Solid State Drive or SSD is a newer technology that use no moving parts. This allows them to read and write data much faster than HDDs, and they are more reliable because there are no moving parts that can get damaged. The trade-off is that they cost more than a traditional HDD of the same storage capacity would. SSDs also use the same Serial ATA connection inside the computer.

PCIe-based Flash Storage is the newest storage option currently available. PCIe-based Flash Storage uses the PCIe connection—which stands for Peripheral Component Interconnect express– inside of the computer instead if the slower Serial ATA connection that HDDs and SDDs use. PCIe storage allows for ultrafast data transfers that are up to ten times faster than a traditional HDD. As you can imagine, the price for this storage option is still fairly high.

Tip: It’s a good idea to store your samples and media content on an external storage device. This will speed up your systems performance when using a lot of sample content.

4. Graphics Processing Unit

The Graphics Card can be thought of as a smaller computer-within-a-computer that handles everything graphics related, freeing up the main computers resources.

Analogy

The Graphics Processing Unit, sometimes called the graphics card, video card or GPU, can be thought of as a smaller computer-within-a-computer that is handling all things graphics related.

What It’s Good For

As silly as this analogy sounds, it makes sense once you realize that modern graphics cards have their own dedicated processor and dedicated RAM built right onto the physical card. The GPU may seem like something that could be considered less important when dealing with audio production, but it’s a piece of the overall computer’s performance that will definitely be noticed if lacking.

Sluggish screen performance and User Interface issues can distract from the creative flow when working on anything. When Mac OS X Mountain Lion was released, Logic Pro 9 users quickly voiced a bug that was causing the channel EQ to make even the most powerful system’s screens slow and near unresponsive.

The issue was finally dealt with in an update that fixed the way the Channel EQ was utilizing the graphics card, highlighting the importance of having a good GPU when working on any professional level.

Key Terminology

RAM and Processor speed both apply in the same ways as already explained, though specifically for graphics. Typically the RAM is going to be the upgradable option on higher end graphics cards.

An Integrated Graphics Card refers to a graphics card that is integrated into the main computer. This means that the integrated GPU does not have dedicated RAM or a dedicated processor, and is pulling resources from the main system RAM and the main processor, putting additional strain on performance.

A Dedicated Graphics Card by comparison does have it's own built-in RAM and processor, and is the “computer-within-a-computer” that I illustrated above. Having its own resources to draw from frees the main computer system resources to be used for other tasks, such as loading more audio samples and processing more synth plug-ins.

Conclusion

There are a lot of considerations that go into purchasing a computer for music production. The information in this article will help you have a working knowledge of the core components that play a part in your systems overall power and capability. If you have any further questions you'd like answered feel free to ask them in the comments below.
